Signoz

Supported Data Types: Trace Logs RedMetric ServiceInstance Topology

This document describes how to integrate Trace, Logs, RedMetric, ServiceInstance, and Topology data from SigNoz into Syncause.

• You need access to a running Syncause service to complete this tutorial. For instructions, please refer to the "Setup" section.
• You need a running SigNoz service instance, with SigNoz version greater than or equal to v0.85.

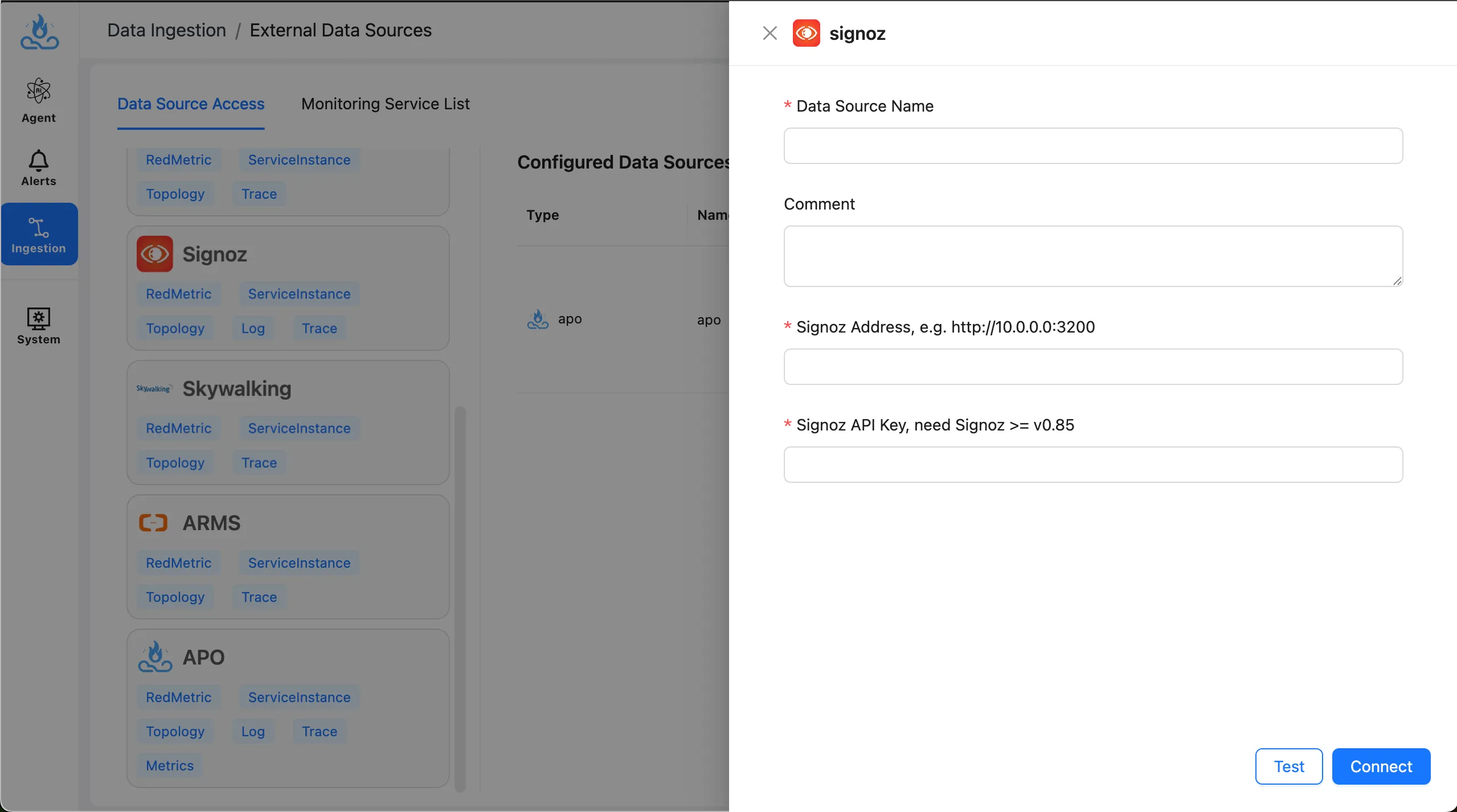

• Access Syncause's Ingestion > External Data Sources > SigNoz to create a new SigNoz data type.

Field Description

Field	Description	Example
Data Source name	Data Source Name	my-SigNoz
Comment	Data Source Comment
SigNoz Address	SigNoz server address	http://10.0.0.0:3200
SigNoz API Key	SigNoz API Key	your_signoz_apikey

Note: Refer to v0.85.0 (2025-05-28) open-source version for API Key.

Setup Guide

Step 1: Locate Your SigNoz API Endpoint

1. Log in to your SigNoz instance.

2. Identify your SigNoz instance URL (for example, example.signoz.io).

3. Construct your API endpoint in the following format:

   https://{URL}/api/v5/query_range

   Example:

   https://example.signoz.io/api/v5/query_range

4. Enter the endpoint value into the SigNoz Address field in the configuration panel.

Step 2: Create a SigNoz API Key

1. Log in to your SigNoz instance.
2. Navigate to the Settings page in the SigNoz UI.
3. Click + New Key, enter a name for the API key, and confirm.
4. Copy the generated API key and paste it into the SigNoz API Key field in the configuration panel.
   • Only users with the Admin role can create or manage API keys.
   • If you do not have admin privileges, please contact your organization’s administrator.
